1.8°110H Stepping Motor Specifications(110H電機技術參數)
型號 Series Model
| 相數 No.of phase
| 步距角 Step Angle (°) | 機身長 Motor Length (mm) | 電流 Rated Current (A) | 電阻 Phase Resistance (Ω) | 驅動電壓 Drive- Voltage (VAC) | 靜力矩 Holding Torque (N. m Min) | 引線數 Lead Wire (No.)
| 重量 Motor Weight (Kg) |
ST110H2500 | 2 | 1.8 | 99 | 4.5 | 0.38 | 110-220 | 8 | 4 | 5 |
ST110H2501 | 2 | 1.8 | 121 | 5 | 0.52 | 110-220 | 12 | 4 | 6.4 |
ST110H2502 | 2 | 1.8 | 137 | 5.5 | 0.6 | 110-220 | 16 | 4 | 7.3 |
ST110H2150 | 2 | 1.8 | 150 | 5.5 | 0.65 | 110-220 | 21 | 4 | 8.5 |
ST110H2503 | 2 | 1.8 | 185 | 6 | 0.9 | 110-220 | 23 | 4 | 10.2 |
ST110H2504 | 2 | 1.8 | 200 | 7 | 1.0 | 110-220 | 28 | 4 | 11.7 |
*All above are conventional products ,special products can be customized according to customer requirements.

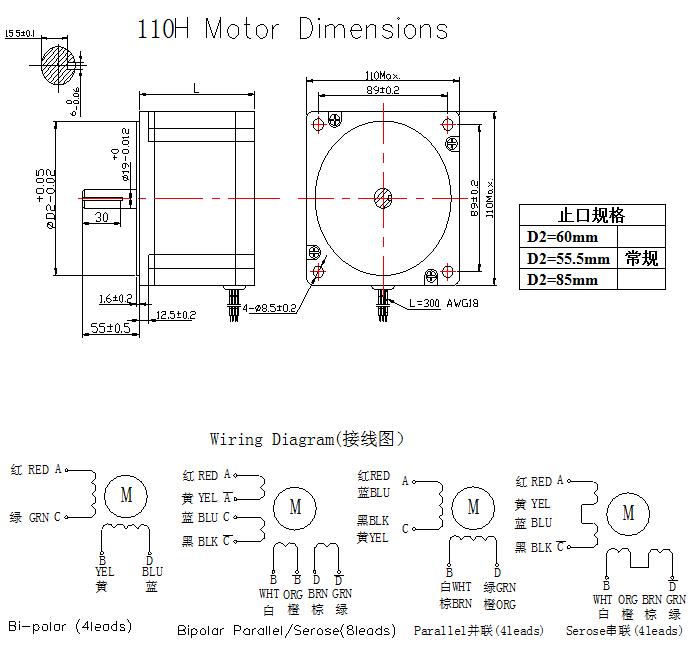

Dimensions(外形圖): unit=mm
