1.8°130BYG Stepping Motor Specifications(130BYG電機技術參數)
型號 Series Model
| 相數 No.of phase
| 步距角 Step Angle (°) | 機身長 Motor Length (mm) | 電流 Rated Current (A) | 電壓 Rated- Voltage (V) | 靜力矩 Holding Torque (N. m Min) | 轉動慣量 Rotor Inertia (Kg.cm2) | 接線方式 Wirings Diagram
|
ST130BYG2501 | 2 | 1.8 | 165 | 6.0 | 120-310 | 27 | 33 | Wdg1 |
ST130BYG2502 | 2 | 1.8 | 230 | 7.0 | 120-310 | 40 | 48 | Wdg1 |
ST130BYG2503 | 2 | 1.8 | 270 | 7.0 | 120-310 | 50 | 60 | Wdg1 |
*All above are conventional products ,special products can be customized according to customer requirements.

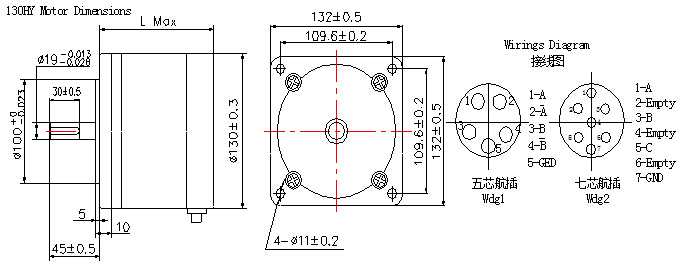

Dimensions(外形圖): unit=mm
