1.2°57H Stepping Motor Specifications(57BYGH電機技術參數)
型號 Series Model
| 步距角 Step Angle (°) | 機身長 Motor Length (L mm) | 相電流 Phase Current (A) | 電阻 Phase Resistance (Ω) | 電感 Phase Inductance (mH) | 靜力矩 Holding Torque (kg.cm Min) | 轉動慣量 Rotor Inertia (g.cm2) | 引線數 Lead Wire (No.) | 重量 Motor Weight (g) |
ST57H340 | 1.2 | 45 |
1.5 | 1.4 | 1.5 | 5 | 120 | 6 | 500 |
ST57H341 | 1.2 | 45 |
3 | 0.48 | 0.5 | 5 | 120 | 6 | 500 |
ST57H350 | 1.2 | 56 |
2 | 2.3 | 9 | 190 | 6 | 750 | |
ST57H351 | 1.2 | 56 |
3 | 0.65 | 0.8 | 9 | 190 | 6 | 750 |
ST57H370 | 1.2 | 76 |
2 | 2.9 | 4.4 | 17 | 480 | 6 | 1150 |
ST57H371 | 1.2 | 76 |
3 | 1.0 | 2.4 | 15 | 480 | 6 | 1150 |
*All above are conventional products ,special products can be customized according to customer requirements.

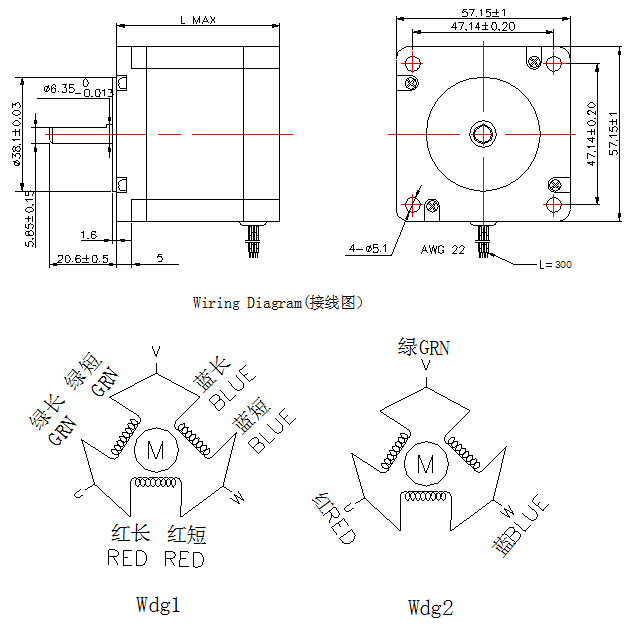

Dimensions(外形圖): unit=mm
