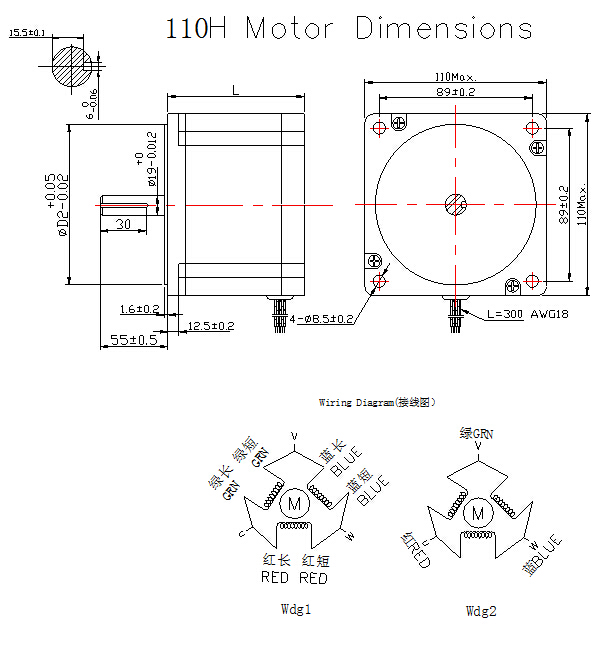

1.2°110H Stepping Motor Specifications(110H電機技術參數)
型號 Series Model
| 相數 No.of phase | 步距角 Step Angle (°) | 機身長 Motor Length (mm) | 電流 Rated Current (A) | 電壓 Drive-Voltage (VAC) | 靜力矩 Holding Torque (N. m Min) | 轉動慣量 Rotor Inertia (Kg.cm2) | 接線方式 Wirings Diagram |
110H3501 |
3 | 1.2 | 112 | 4.2 | 220 | 12 |
6.5 |
Wdg2 |
110H3502 |
3 | 1.2 | 150 | 4.5 | 220 | 16 |
7.2 |
Wdg2 |
110H3503 |
3 | 1.2 | 162 | 4.8 | 220 | 20 |
8 |
Wdg2 |
110H3504 |
3 | 1.2 | 193 | 5.2 | 220 | 25 |
12.5 |
Wdg2 |
*All above are conventional products ,special products can be customized according to customer requirements.
