42BLM直流無刷電機技術參數
型號 Series Model | 電壓 Voltage (V) | 電流 Rated Current (A) | 電阻 Phase Resistance (Ω) | 空載轉速No load speed (rpm) | 額定轉速Rated speed (rpm) | 額定轉矩 Rated torque (N.M) | 最大轉矩Torque Max (N.m) | 轉矩常數Torque constant(Nm/A) | 反電勢 Back-EMF constant V/Krpm | 功率 Power Watts(W) | 機長 Motor Length (mm) | 重量 Weight (g) |
ST42BLM001 | 24 | 1.7 | 1.5 | 5000 | 4000 | 0.063 | 0.19 | 0.039 | 3.13 | 21 | 41 | 300 |
ST42BLM002 | 24 | 2.4 | 1 | 5000 | 4000 | 0.096 | 0.23 | 0.04 | 3.13 | 30 | 51 | 400 |
ST42BLM003 | 24 | 3.5 | 0.74 | 5000 | 4000 | 0.125 | 0.38 | 0.04 | 3.15 | 52 | 61 | 500 |
ST42BLM004 | 24 | 3.16 | 0.74 | 5000 | 4000 | 0.18 | 0.57 | 0.05 | 3.16 | 78 | 81 | 700 |

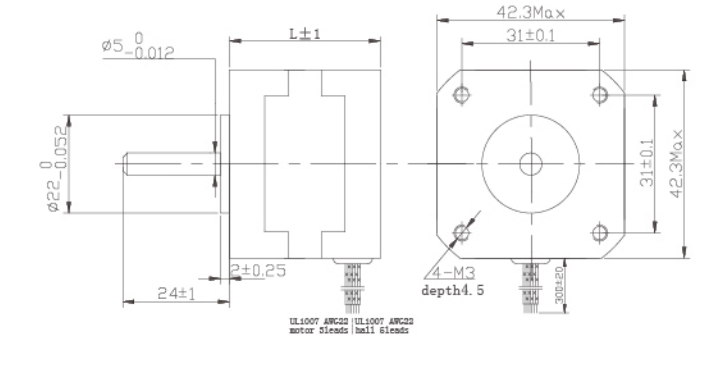

Dimensions(外形圖): unit=mm
、
