1.2° 130BYG Stepping Motor Specifications(130BYG電機技術參數(shù))
型號 Series Model
| 相數(shù) No.of phase
| 步距角 Step Angle (°) | 機身長 Motor Length (mm) | 電流 Rated Current (A) | 電壓 Rated- Voltage (V) | 靜力矩 Holding Torque (N. m Min) | 轉(zhuǎn)動慣量 Rotor Inertia (Kg.cm2) | 接線方式 Wirings Diagram
|
ST130BYG3501 | 3 | 1.2 | 165 | 5.0 | 220 | 22 | 23 | Wdg2 |
ST130BYG3502 | 3 | 1.2 | 230 | 5.0 | 220 | 36 | 35 | Wdg2 |
ST130BYG3503 | 3 | 1.2 | 280 | 6.0 | 220 | 50 | 45.5 | Wdg2 |
*All above are conventional products ,special products can be customized according to customer requirements.

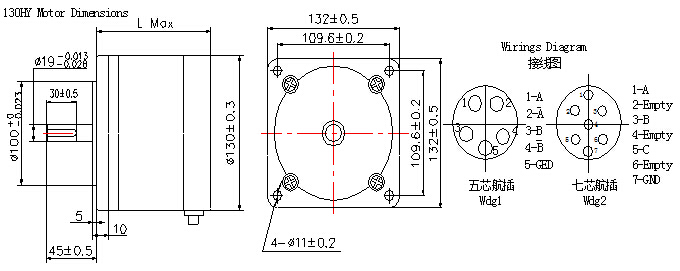

Dimensions(外形圖): unit=mm
